Masking PHI/PII Data in Helical Insight Canned Reports

[snow]

Hello Helical Insight Team,

We are using open source BI Helical Insight 6.2.0.952 GA. How can we mask sensitive PHI/PII data such as phone numbers, SSN, or account numbers in Helical Insight Canned Reports?

For example, if a phone number is displayed in the report, we want to show only the last 4 digits and mask the remaining digits for security and compliance purposes.

Is there any way to achieve this directly in the Typography/Expression section of the report?

Example expected output:

XXXXXXXX1234

Thanks,
Snow.

[helicalforum]

Hello Snow,

Method 1: Yes, masking of sensitive PHI/PII data can be achieved directly using the field expression of the Canned Report using Java string expressions and regular expressions.

Example for masking a phone number while displaying only the last 4 digits:

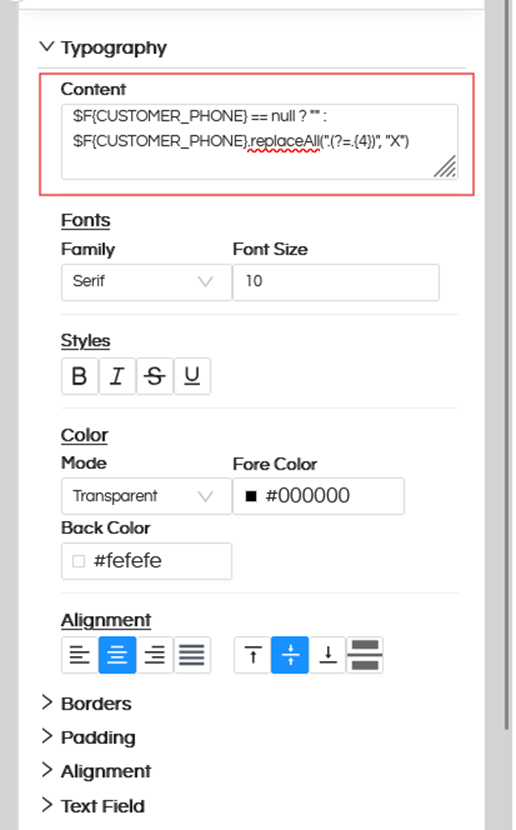

$F{CUSTOMER_PHONE} == null ? “” :

$F{CUSTOMER_PHONE}.replaceAll(".(?=.{4})", “X”)

Explanation. In this code we are checking, if it is not null then we are replacing the 4 characters.

replaceAll() is used to replace characters using regex.

.(?=.{4})

Masks all characters except the last 4 characters.

“X”

Replaces the masked characters with X.

Example

Original Value Masked Output

9876543210 XXXXXX3210

123456789012 XXXXXXXX9012

Helps secure sensitive PHI/PII data and prevents exposure of confidential information without requiring backend changes.

The same approach can be used for masking SSN, Aadhaar, account numbers, email addresses, and other customer identifiers

Method 2: In the second method, we can directly write the encryption logic in SQL itself.

Thank You,
Helical Insight Team.
