Grid table cross tab Total Showing 0

Adhoc
, , , ,
#1

Hello,

We are using open source BI Helical Insight 5.2 enterprise version. We have created a grid table and are trying to enable the grand total for a grid table using the properties of the crosstab.

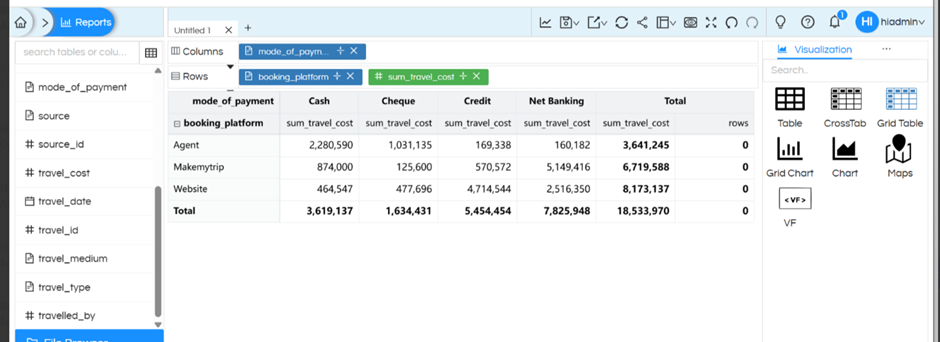

However, it is not working as expected. At the right it is adding a grand total but those values are visible as 0. Could you provide the steps to achieve this? Refer to the below image


Thanks.

#2

Hello Netta,

Generate the grid table, by keeping the measure column in the Columns section.

To enable grand totals for the grid table:

Click the three dots next to Visualization.

Select Properties.

Choose ‘Crosstab’ from the options.

Enable the ‘Show Grand Totals’ toggle. (refer : Crosstab Properties - Helical Insight )

Click Apply to save the changes."

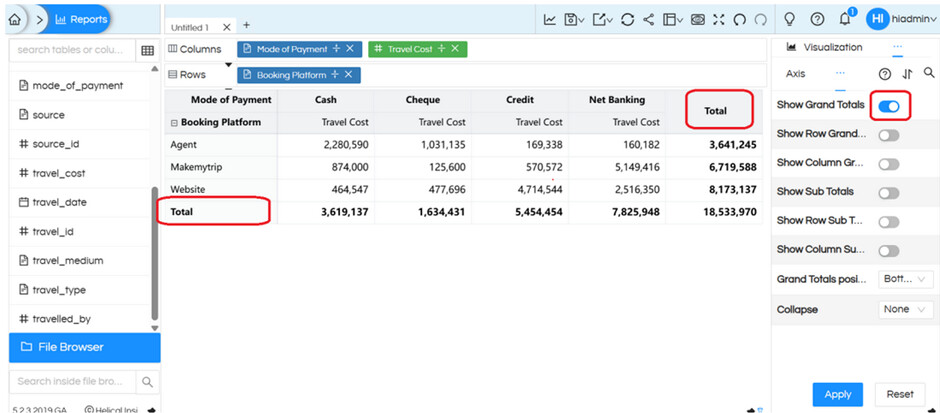

Please refer to below screenshot


Note : You can also use all the properties of Crosstab in a grid table
