Characters Missing or Replaced When Exporting Canned Reports

[jingxiang]

Hi Helical Insight team,

I encountered an issue while exporting a Canned Report. The problem occurs in both the Docker deployment and the JAR-based installation of Helical Insight.

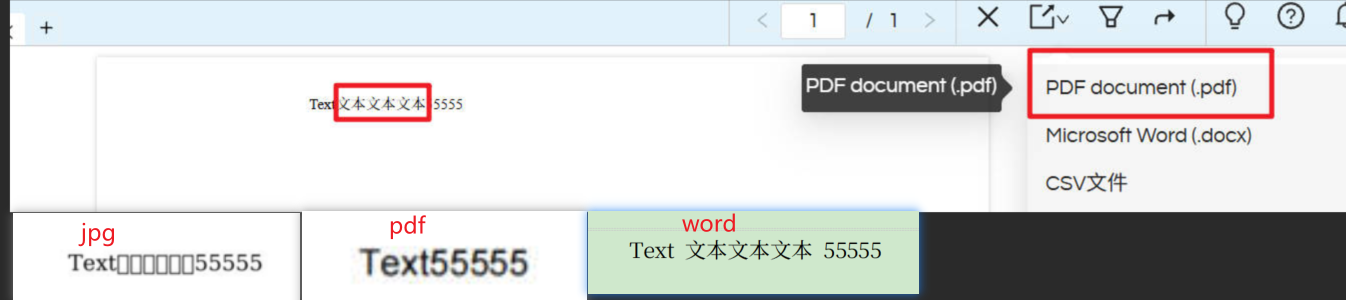

The export results are as follows:

• PDF: Chinese characters are not displayed.
• JPG/PNG: Chinese characters are replaced with empty squares.
• Word/XLS/TXT: Chinese characters are displayed correctly.

I checked both the application logs and the browser console, but no errors were reported.

Could you please help investigate this issue and advise whether any configuration are required?

Thank you.

[helicalforum]

Hi @jingxiang ,

When we export, there are limited font types which are present by default which are used. If any custom font, which is not directly present in that, is used though it appears on the HTML page, it does not appear in the PDF (and few other exports). It uses often fall back font or shows special character.

If you can share the font download link, we can compile the font from our end and give you a file which you can deploy at your end. Then when exporting happens, even that specific font will also appear properly in the export.

[jingxiang]

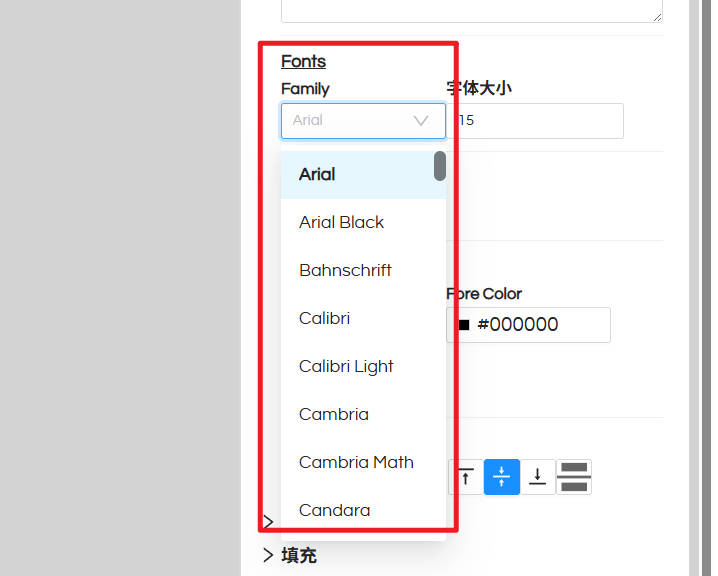

Hello. I am using the default font of the Helical report. I also tried several fonts from the dropdown list, but when exporting the report to PDF, all Chinese characters disappear, leaving only English characters and numbers.

[helicalforum]

@jingxiang

The PDF exporter can only display characters that exist in the font embedded in the PDF. Most of the default fonts (SansSerif, DejaVu, etc.) do not contain Chinese glyphs, so Chinese text disappears while English letters and numbers remain.

Request you to please share below

• The exact font name used for the Chinese text in the report (for example, Microsoft YaHei, SimSun, Noto Sans CJK, etc.).
• A screenshot of the text field Font settings showing:
  • Font Name
  • PDF Font Name
  • PDF Encoding
  • PDF Embedded

[jingxiang]

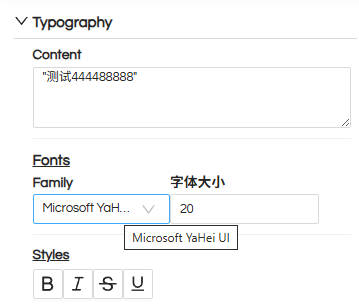

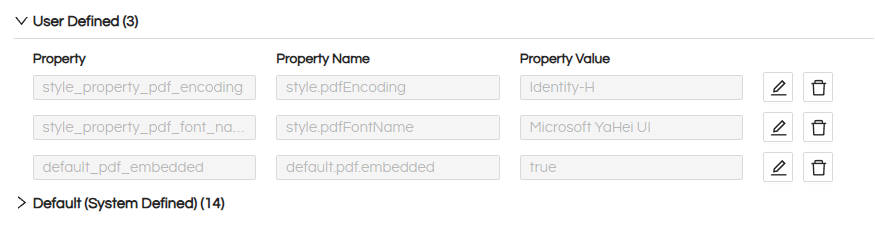

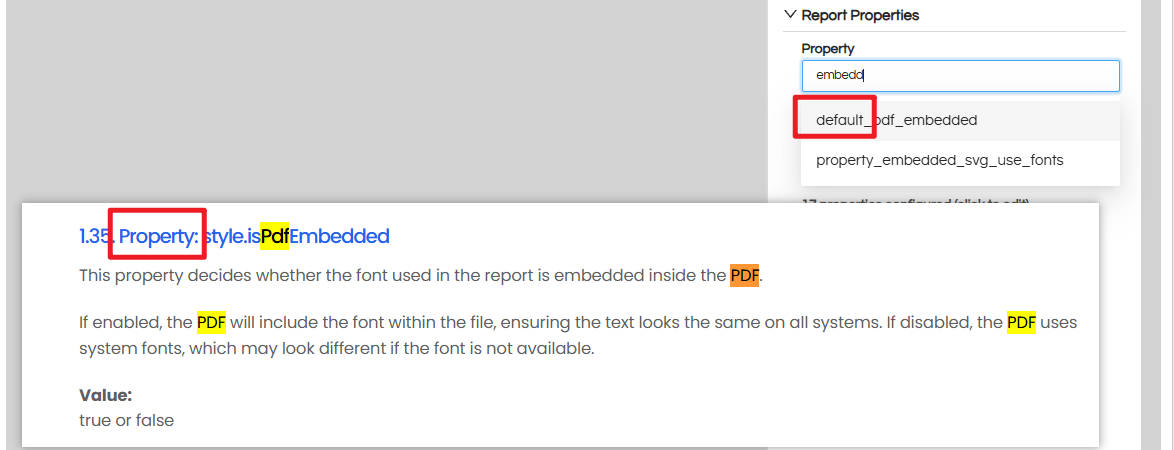

Here are the settings I configured. I couldn’t find the “style.isPdfEmbedded” property. I only found the “default” property in the dropdown list.

[helicalforum]

Hello,

If a new font is required in the Helical Insight Canned Report (HCR) module, there are two separate steps to consider:

1. Installing the font at the OS level, so that it becomes available in the HCR UI.
2. Configuring the font for PDF export, so that the font is embedded/used correctly in the generated PDF.

Prerequisite: Install the font at OS level

Any new font must first be installed at the operating-system level.

Please follow the steps mentioned here:

Hello,

If a new font is required in the Helical Insight Canned Report (HCR) module, there are two separate steps to consider:

1. Installing the font at the OS level, so that it becomes available in the HCR UI.
2. Configuring the font for PDF export, so that the font is embedded/used correctly in the generated PDF.

Prerequisite: Install the font at OS level

Any new font must first be installed at the operating-system level.

Please follow the steps mentioned here: Add new font canned report module - Adhoc - Helical Insight Forum

After completing this step, the font should become available in the Font Family dropdown in HCR.

In this particular case, this step has already been completed, which is why the Yahei UI font is visible in the HCR UI.

However, if the font is visible in the UI but is not appearing correctly in the exported PDF, additional font configuration is required.

Follow the steps below.

Configure the font for PDF export

1. Create the font folder structure

Create a folder named:

fonts

Inside the fonts folder, create another folder with the name of your font family.

For example, for Yahei UI:

fonts/
       └── Yahei UI/
             ├── Yahei UI Regular.ttf
             ├── Yahei UI Bold.ttf
             ├── Yahei UI Italic.ttf
             └── Yahei UI Bold Italic.ttf

Place the corresponding TTF files inside this folder.

Note: The exact TTF filenames may differ depending on the font package you have. Use the actual filenames of your font files.

It is recommended to provide the four variants, if available:

• Regular
• Bold
• Italic
• Bold Italic

2. Create fontsfamily.xml

Inside the fonts folder, create a file named:

fontsfamily.xml

The structure should be similar to the following:

<?xml version="1.0" encoding="UTF-8"?>
<fontFamilies>
    <fontFamily name="Yahei UI">
        <normal><![CDATA[fonts/Yahei UI/Yahei UI Regular.ttf]]></normal>
        <bold><![CDATA[fonts/Yahei UI/Yahei UI Bold.ttf]]></bold>
        <italic><![CDATA[fonts/Yahei UI/Yahei UI Italic.ttf]]></italic>
        <boldItalic><![CDATA[fonts/Yahei UI/Yahei UI Bold Italic.ttf]]></boldItalic>
        <pdfEncoding><![CDATA[Identity-H]]></pdfEncoding>
        <pdfEmbedded><![CDATA[true]]></pdfEmbedded>
        <exportFonts/>
    </fontFamily>
</fontFamilies>

Important

The above is only an example.

You must change the following according to your actual font:

• fontFamily name="..."
• normal
• bold
• italic
• boldItalic

The paths must exactly match the location and filenames of the TTF files inside the JAR.

For example, the structure for an Aptos font would look like:

<fontFamily name="APTOS">
    <normal><![CDATA[fonts/APTOS/Aptos.ttf]]></normal>
    <bold><![CDATA[fonts/APTOS/Aptos-Bold.ttf]]></bold>
    <italic><![CDATA[fonts/APTOS/Aptos-Italic.ttf]]></italic>
    <boldItalic><![CDATA[fonts/APTOS/Aptos-Bold-Italic.ttf]]></boldItalic>
    <pdfEncoding><![CDATA[Identity-H]]></pdfEncoding>
    <pdfEmbedded><![CDATA[true]]></pdfEmbedded>
    <exportFonts/>
</fontFamily>

The important point is that the paths in normal, bold, italic, and boldItalic must point to the actual TTF files.

3. Create jasperreports_extension.properties
   Create another file named:

jasperreports_extension.properties

Important: This file should NOT be inside the fonts folder.

It should be at the same level as the fonts folder.

The directory structure should therefore look like:

<root-folder>/
├── fonts/
│   ├── Yahei UI/
│   │   ├── Yahei UI Regular.ttf
│   │   ├── Yahei UI Bold.ttf
│   │   ├── Yahei UI Italic.ttf
│   │   └── Yahei UI Bold Italic.ttf
│   └── fontsfamily.xml
│
└── jasperreports_extension.properties

Put the following content in jasperreports_extension.properties:

net.sf.jasperreports.extension.registry.factory.fonts=net.sf.jasperreports.engine.fonts.SimpleFontExtensionsRegistryFactory
net.sf.jasperreports.extension.simple.font.families.ireportfamily=fonts/fontsfamily.xml

This tells where the font-family definition is located.

4. Bundle the files into a JAR

Once the folder structure is ready, the complete folder needs to be bundled into a JAR file.

For example, if your structure is:
YaheiUI/
├── fonts/
│ ├── Yahei UI/
│ │ ├── Yahei UI Regular.ttf
│ │ ├── Yahei UI Bold.ttf
│ │ ├── Yahei UI Italic.ttf
│ │ └── Yahei UI Bold Italic.ttf
│ └── fontsfamily.xml
│
└── jasperreports_extension.properties

Open Command Prompt/Terminal inside the YaheiUI folder and execute:

jar cf YaheiUI-font-extension.jar fonts jasperreports_extension.properties

This will create:

YaheiUI-font-extension.jar

Verify the JAR
You can verify that the files were packaged correctly using:

jar tf YaheiUI-font-extension.jar

You should see entries similar to:
META-INF/
META-INF/MANIFEST.MF

fonts/
fonts/Yahei UI/
fonts/Yahei UI/Yahei UI Regular.ttf
fonts/Yahei UI/Yahei UI Bold.ttf
fonts/Yahei UI/Yahei UI Italic.ttf
fonts/Yahei UI/Yahei UI Bold Italic.ttf
fonts/fontsfamily.xml
jasperreports_extension.properties

Important: jasperreports_extension.properties and the fonts directory must be at the root of the JAR, not inside another nested directory.

5. Copy the JAR to Helical Insight
Copy the generated JAR file into:

....\apache-tomcat-11\webapps\hi-ee\WEB-INF\lib

For example:

apache-tomcat-11/
└── webapps/
    └── hi-ee/
        └── WEB-INF/
            └── lib/
                └── YaheiUI-font-extension.jar

6. Restart Helical Insight

After copying the JAR, restart the Helical Insight/Tomcat server. A restart is required so that it can load the newly added font extension.

7. Test the PDF export

After the restart:

1. Open the Canned Report in HCR.
2. Select Yahei UI as the font.
3. Generate/export the report as PDF.
4. Verify the generated PDF.

The font should now be correctly used in the PDF export as well.

The key point is that **OS-level font installation makes the font available to the Helical Canned reports UI, while the font-extension JAR makes the font available to the reporting engine and allows it to be embedded in the PDF.

This same approach can be followed for deploying and using any other custom fonts with helical insight canned reports, both at frontend as well as in the exported version (like PDF etc); only the font family name and TTF file paths need to be changed accordingly.

Thank you
